The landmark pylon at VISTEC derives from the physical form
of a Carbon Nanotube -- a substance that measures as small as 1 nanometer, or
about 1/10,000 of human hair. Initiated by PTT group, VISTEC is designated to
be a frontier research institute focusing on molecular (chemical) and material
science. The idea of using this scientific form is, thus, a fitting symbol of
the institute.
Situated in the heart of the campus, the pylon will act as a
landmark, both by day and by night, for the community at VISTEC and the
surrounding areas. Up-close, the pylon becomes a focal point of the open-air
lobby leading to the library and the auditorium. The components were carefully
designed to be prefabricated and installed on site, from the marrow, without
the need for scaffolding, and LED lighting tubes were installed at the final
stage.

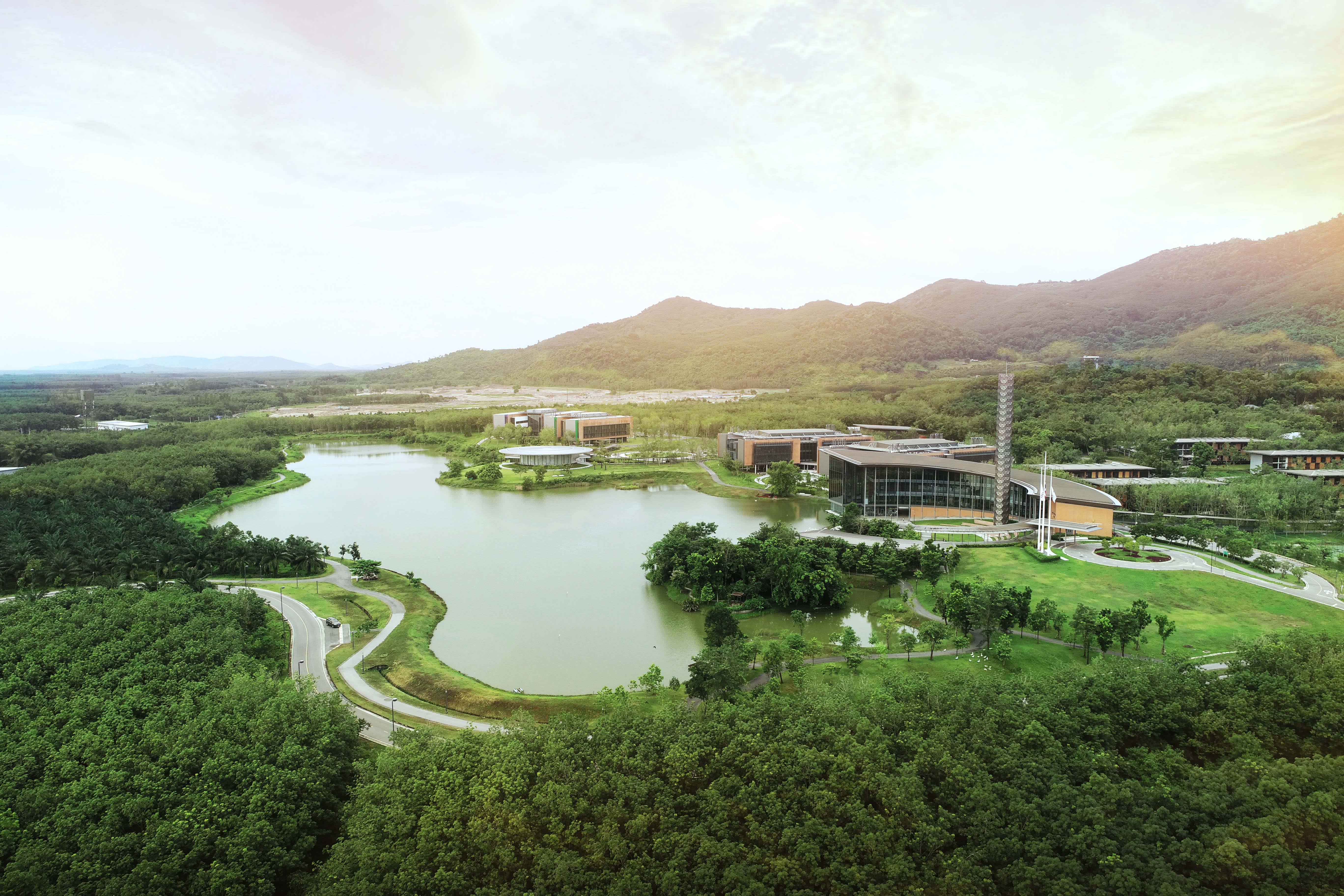

Two main buildings were constructed at this initial stage.
1. The Vidyasirimedhi Building --
A multi-purpose building set as a hallmark of the Vidyasirimedhi Institute of
Science and Technology (VISTEC) in Rayong, Thailand. The design intent
corresponds with the institute’s vision of fostering a conscious lifestyle
through sustainable development.
Under the concept of a preserved
forest, the Vidyasirimedhi Building reinforces the relationship between the
buildings’ interior spaces, the reservoir, and the expansive ecological forest.
It is designed to maximize transparency between indoor and outdoor through a
unique circular form that envelops the central courtyard, called Laan Jai Baan,
and the nanotube tower. This Laan Jai Baan acts as the central node of axial
planes which links all buildings together.
The Vidyasirimedhi Building is
also first-of-its-kind amongst higher education institutions in Thailand,
awarded the prestigious LEED Gold Certification by the U.S. Green Building
Council (USGBC). The design has cost-effectively integrated several sustainable
strategies that minimize energy consumption on a limited budget by 22% to meet LEED
standard design.
One of the prominent features of
the building is the extensive roof overhang, that modulates with the form of
the building, to reduce direct sunlight and external heat into the building. The
orientation of the building also plays a significant role in minimizing energy
consumption by planning enclosed space, such as locating maintenance and
storage rooms to the southwest, while allowing spaces that require fenestration
to face the central courtyard to the north. The library, E-library, and the cafeteria
are set near the central courtyard so professors, students and researchers can
meet and interact.
2. The Laboratory Building in Vidyasirimethi Institute of
Science and Technology is formed out of a cluster of lab rooms, students and
post-doctorate researchers’ workspace and offices, enabling faculty to engage
in a community-like atmosphere.
Education 3.0, a new approach to learning that embraces
technology and social collaboration, is also implemented as a significant part
of the design. Public areas, which are typically transitional spaces, are
adapted into collaborative spaces to learn and teach outside of classrooms so
researchers can generate new ideas through keen interaction. The public area is
treated as an atrium that connects all the laboratory clusters together,
facilitating a variety of activities such as temporary exhibitions,
conferences, lectures and social interactions with other users.
A feature staircase in the atrium, with seating capacity, is
also intentionally designed to further support interaction and create a lively
atmosphere befitting the concept of Education 3.0. Another major consideration
was to incorporate sustainable features that improve users’ well-being. This
was achieved by designing the atrium to facilitate natural ventilation through
stack effect and allowing diffused natural light to pass through aluminum tubes
down from clerestory to the space. This method diffuses direct sunlight into
indirect light, pleasantly distributed to areas of the building where it is
required.
